PUMPS

PUMP, 4" CENTRIFUGAL TRASH

Where to find PUMP, 4  CENTRIFUGAL TRASH in Whistler

Image for reference only
Actual item may look different
Click on image for larger view

Where to find PUMP, 4  CENTRIFUGAL TRASH in Whistler

Click on above thumbnails for alternate view

Daily: $78.00

Weekly: $312.00

Quantity: for a period of
day(s)   week(s)


Additional Information

423 gal./min capacity
Solid handling capability up to 1 1/16"
Cast iron volute and impeller
Quick clean out port

Specifications:
Engine - GX390
Displacement - 389 cc
Bore and stroke - 3.5" x 2.5"
Compression Ratio - 8.2:1
Oil Alert - Std
Pump Type - Trash Centrifugal Self-priming
Volute - Rigid Mounted Cast Iron w/ Stainless Wear Plate
Impeller - Conical Cast Iron
Mechanical Seal (Pump case / impeller) - Silicon Carbide/Silicon Carbide
Priming time - 150 sec. @16.4 ft.
Drive system - Direct
Discharge capacity - 423 gal/min
Suction port diameter - 4"
Discharge port diameter - 4"

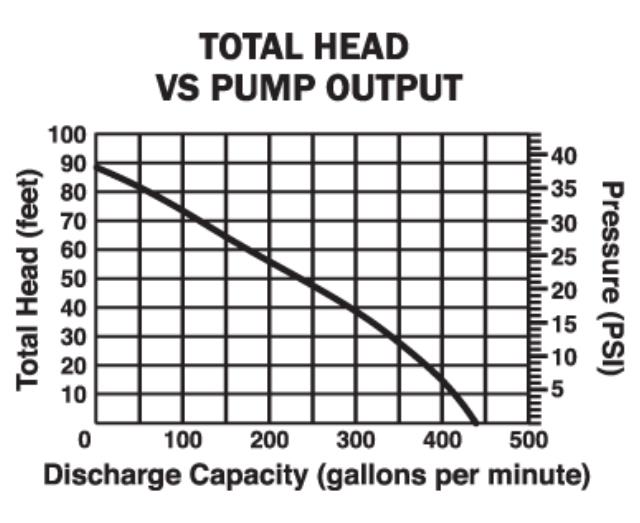

Total head lift - 82 ft.
Suction head lift - 26 ft.
Maximum pressure - 36 psi
Solids handling - 1 1/16 inches
Dimensions (LxWxH) - 28.9" x 21.1" x 22.2"
Dry weight - 172 lbs.
Fuel Capacity - 1.6 gal
Run Time @ Max Discharge - 1.5 hr
Strainer Part - #78325-YG2-003
